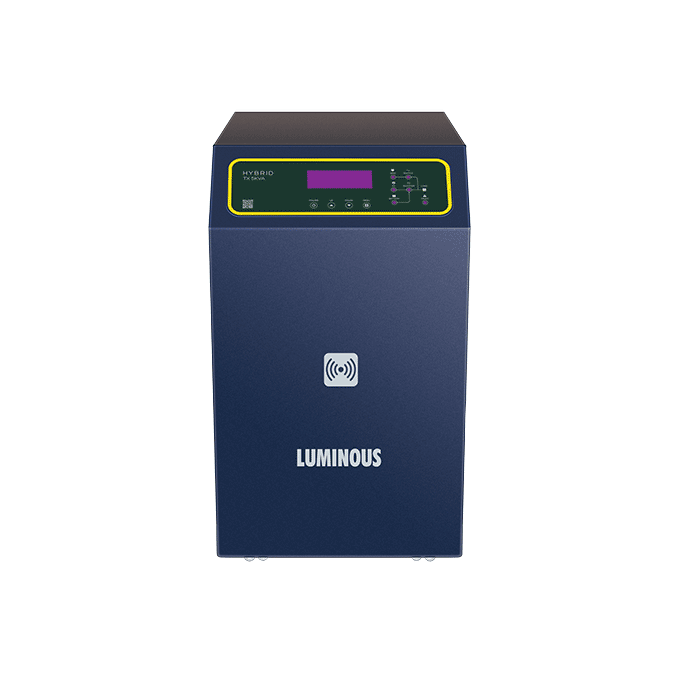

Luminous Hybrid TX series

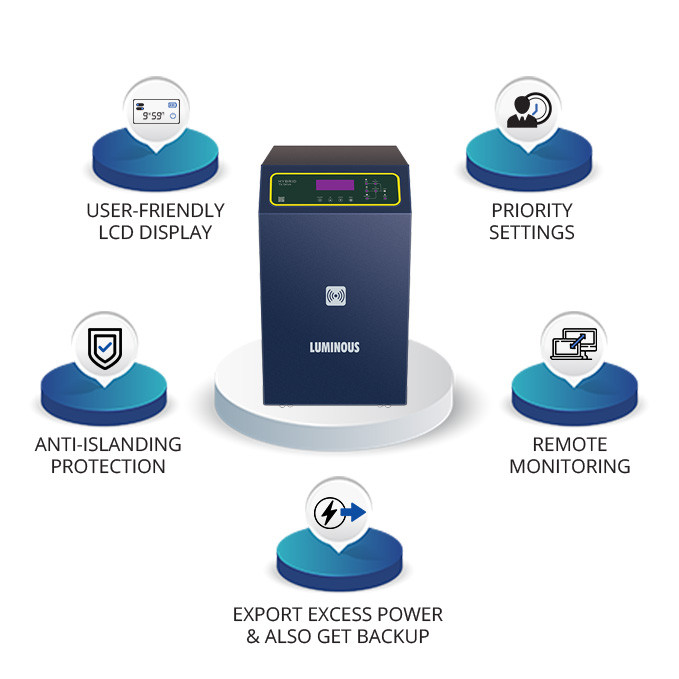

Luminous Hybrid TX series Operating Range - 180V-270V (single phase) Max Supported Panel Power - 4000 Wp, Input Voltage Range (Vmp) – 65V-130V Charge Controller - MPPT, Input Voltage Range (Voc)- 65V-165V Nominal Battery Bank Voltage - 48V BIS certified solar hybrid inverter Real time remote monitoring Anti-islanding protection to ensure safety of line workers Inbuilt MPPT charge controller to maximize solar generation from solar panels Inbuilt isolation transformer to protect from grid surges and noise User selectable source priority: Choose source priority among SBG, SGB, Solar Only and Grid Feed mode User friendly Informative LCD Display along with LED indications In-built zero export function Pure sine wave output for better performance & safety of connected loads Safe for your home with comprehensive protection features such as short-circuit, reverse polarity, battery overload, etc.

All Models Available: TX 5 KVA, TX 3.75 KVA

Hybrid inverter range from Luminous is a combination of an on-grid and off-grid solar system which makes this inverter more versatile than other solar inverters helping in lowering your electricity bills and protecting from power outages. It can easily work without grid, store electricity in batteries as well as export excess electricity generated to the grid. Priority Setting Allows users flexibility to set priority settings based on their requirement of maximum energy saving, power backup only during power cut and power backup through battery in areas where grid supply is not available.
