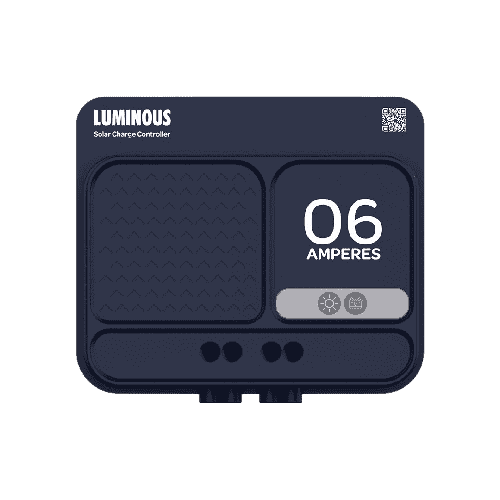

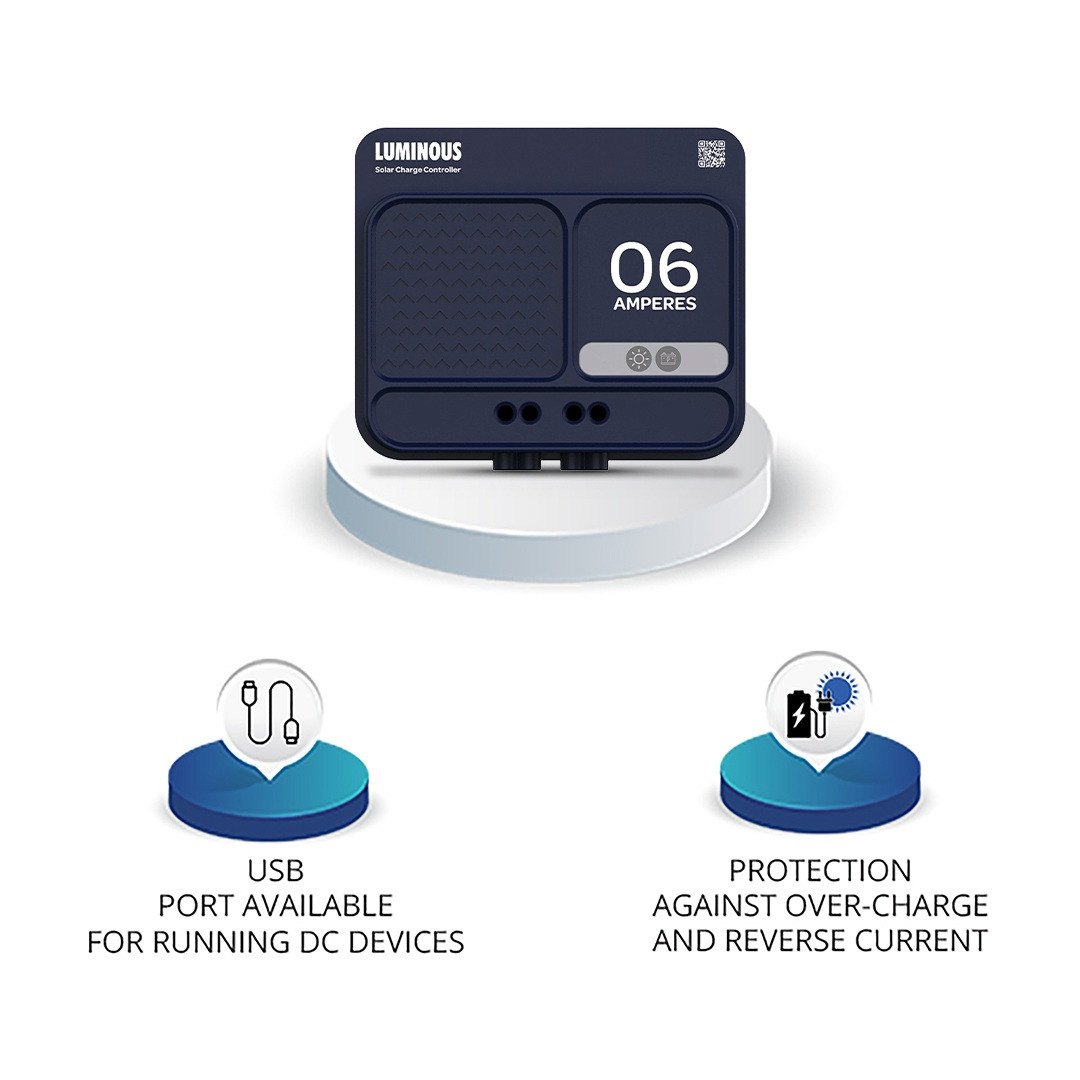

Luminous Solar Charge Controller efficiently charges batteries from solar panels while preventing overcharge and reverse current flow at night. Featuring a microcontroller-based design, PWM technology, and automatic 12/24V selection, it ensures optimal performance for SMF and Tubular batteries. With built-in electrical protections, user-friendly indicators, it offers reliable and intelligent charging with a 3-stage process (bulk, boost, and float).
• Dusk - Dawn feature in built.
• Microcontroller based designs for intelligent operation.
• Equipped with user friendly graphical indicators.
• PWM based technology and charging algorithm suitable for all of SMF & Tubular batteries.
• Automatic battery voltage selection of 12/24V.
• Highly efficient with all in-built electrical protections.
• Inbuilt 06Amps. controller with battery protection.
• Case Protection: IP21.
• 3 stage charging (bulk, boost & float).
1 N Charge controller, 1 N Manual
108 x 38 x 120
06A
0.13
120wp@12 & 240wp@24
Homes and Small Shops
12 Months (For detailed terms and conditions of warranty please refer to the manual card supplied along with the product)
